这篇文章是向 Ray Wenderlich 中 Swift Algorithm Club 的投稿文。用来讲述 Segment Tree
的区间更新操作以及 Swift 实现方案。Open Issue #591
在原始的实现中,Artur Antonov 利用 Swift 中很优雅的泛型<T>
方式来对 Segment Tree 这个数据结构进行了实现。并且在这个实现中可以对其传递一个 function: (T, T) -> T
来反映两个叶子节点对父节点的影响。并且泛型的优势体现在可以用 Segment Tree 来解决字符串的问题,就像 Playground 中最后的这个例子:
stringSegmentTree . replaceItem ( at: 0 , withItem: "I" )
stringSegmentTree . replaceItem ( at: 1 , withItem: " like" )
stringSegmentTree . replaceItem ( at: 2 , withItem: " algorithms" )
stringSegmentTree . replaceItem ( at: 3 , withItem: " and" )
stringSegmentTree . replaceItem ( at: 4 , withItem: " swift" )
stringSegmentTree . replaceItem ( at: 5 , withItem: "!" )
print ( stringSegmentTree . query ( leftBound: 0 , rightBound: 5 ))
// "I like algorithms and swift!"
<T>
这种方式固然有趣,可以利用 Segment Tree 来做字符串处理的地方真的少之又少。况且此数据结构的出现源自于区间性处理问题 ,将一维集合通过分制思想多线段划分,从而以空间换时间达到高效操作的数据结构。而最常见的问题即为解决区间内任意子区间求和的问题。从原本 O(n)
时间复杂度以二分查询的形式降低为 O(logn)
,达到高效查询。
pushUp 向下递归,向上更新操作
我们可以参考一下 Artur Antonov 的实现方法,其中有建树、单点更新和区间查询三种操作。这里将 Segment Tree 的建树操作和单点更新拿出来看一下:
public init ( array: [ T ], leftBound: Int , rightBound: Int , function: @escaping ( T , T ) -> T ) {
self . leftBound = leftBound
self . rightBound = rightBound
self . function = function
// ①
if leftBound == rightBound {
value = array [ leftBound ]
}
// ②
else {
let middle = ( leftBound + rightBound ) / 2
leftChild = SegmentTree < T > ( array: array , leftBound: leftBound , rightBound: middle , function: function )
rightChild = SegmentTree < T > ( array: array , leftBound: middle + 1 , rightBound: rightBound , function: function )
value = function ( leftChild! . value , rightChild! . value )
}
}
在 ① 位置中,当遍历节点的左边极限范围和右边极限范围相同时,则说明这是一个叶子节点,则直接为其赋值即可。而 ② 位置说明该节点为父节点(仅对于有无子节点而言)时,需要对下层叶子继续构建,在后续的递归过程时对该节点进行构建。
继而,我们来看单点更新(Query)的操作:
public func query ( leftBound: Int , rightBound: Int ) -> T {
if self . leftBound == leftBound && self . rightBound == rightBound {
return self . value
}
guard let leftChild = leftChild else { fatalError ( "leftChild should not be nil" ) }
guard let rightChild = rightChild else { fatalError ( "rightChild should not be nil" ) }
// ①
if leftChild . rightBound < leftBound {
return rightChild . query ( leftBound: leftBound , rightBound: rightBound )
}
// ②
else if rightChild . leftBound > rightBound {
return leftChild . query ( leftBound: leftBound , rightBound: rightBound )
}
// ③
else {
let leftResult = leftChild . query ( leftBound: leftBound , rightBound: leftChild . rightBound )
let rightResult = rightChild . query ( leftBound :rightChild . leftBound , rightBound: rightBound )
return function ( leftResult , rightResult )
}
}
在 ① 位置中是查询位置的左边界在当前节点的右边界,这时候说明击中范围偏右,需要继续向右递归查询。② 位置的情况和 ① 的情况相反,继续想左递归查询即可。而 ③ 中的代码说明当前位置为需查询位置,则继续向下递归查询,直到为单值或是恰好卡中区间即可返回结果。

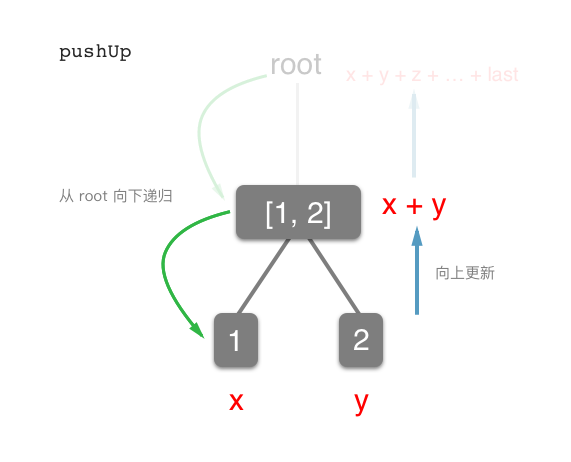

从上述两个代码中,我们发现这么一个共有的部分,就是向下递归,向上更新 部分。其实,我们完全可以将这个向下更新的操作分离处理,当需要的时候调用即可。以下是 func pushUp(lson: LazySegmentTree, rson: LazySegmentTree)
操作:
// MARK : - Push Up Operation
// Description : 这里是 push up 操作,用来对 Segment Tree 向上更新
private func pushUp ( lson: LazySegmentTree , rson: LazySegmentTree ) {
self . value = lson . value + rson . value
}
以上代码中,仅仅对 SumSegmentTree
进行了实现,即求和线段树。有了这个方法,我们队构建和单点替换操作就可以直接调用实现。示例代码如下:
public init ( array: [ Int ], leftBound: Int , rightBound: Int ) {
self . leftBound = leftBound
self . rightBound = rightBound
self . value = 0
self . lazyValue = 0
if leftBound == rightBound {
value = array [ leftBound ]
return
}
let middle = ( leftBound + rightBound ) / 2
leftChild = LazySegmentTree ( array: array , leftBound: leftBound , rightBound: middle )
rightChild = LazySegmentTree ( array: array , leftBound: middle + 1 , rightBound: rightBound )
pushUp ( lson: leftChild! , rson: rightChild! )
}
// MARK : - One Item Update
public func update ( index: Int , newValue: Int ) {
if self . leftBound == self . rightBound {
self . value = newValue
return
}
guard let leftChild = leftChild else { fatalError ( "leftChild should not be nil" ) }
guard let rightChild = rightChild else { fatalError ( "rightChild should not be nil" ) }
let middle = ( self . leftBound + self . rightBound ) / 2
if index <= middle { leftChild . update ( index: index , newValue: newValue ) }
else { rightChild . update ( index: index , newValue: newValue ) }
pushUp ( lson: leftChild , rson: rightChild )
}
从 pushDown 操作到使用 Lazy 思想对区间进行更新
上文中对于 pushUp
操作也许你会觉得其实没有多少变化。其实是为了引入接下来要说的 pushDown
,进行相对而言的。
但是我想先来聊聊区间操作。所谓区间操作就是对集合中连续的一系列数据进行更新操作。在 Artur Antonov 的代码中,并没有实现这个操作,但是我们可以直接想到,通过一个 for
循环就可完成对于一个区间进行更新:
// Sample : 对集合下标 [ 2 , 5 ] 的数据进行更新
for index in 2 ... 5 {
sumSegmentTree . update ( index: index , incremental: 3 )
}
可是这要就会存在一个 O(n)
复杂度的遍历,最后使得区间更新操作的时间复杂度为 O(nlogn)
。那么有没有一种方法,将其优化至 O(logn)
,从而使其和单点更新以及范围查询两个操作一样优美呢?

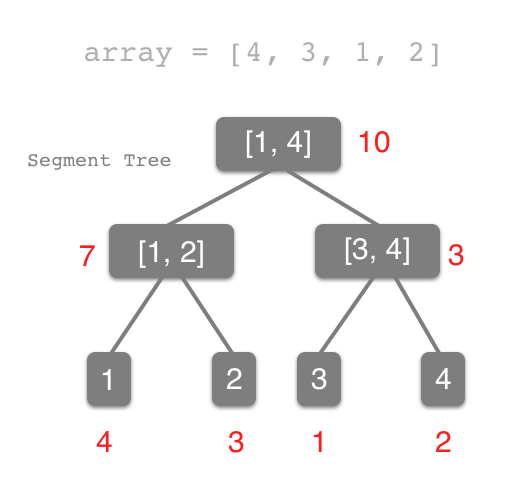

考虑这个问题,我们需要重新来审视线段树的这个结构:
而在代码中,我们只能拿到这棵线段树的根节点。如果我们想深入到底层,然后再对树从最底层的叶子节点进行 pushUp
向上更新这样就能完成当前目标了,这样就要求先对这棵二叉树进行一次遍历。但一次遍历可不是易事,无论是先序还是后序,无论 DFS 还是 BFS,找到每个叶子节点一定是需要 O(n)
的复杂度,这已经超出了我们的期望。
所以我们开始考虑 pushDown
向下更新这种新操作,我们在大范围的父内对数据进行更新,然后再向下递归时,根据更新要求,再对叶子节点进行更新 就好了。但是,这好像与 pushUp
没有什么改善,整棵树更新完也需要 O(n)
的复杂度。继续思考,当我们做范围查询操作时,也是从根节点开始,向下去卡区间范围进行递归查询。既然查询和更新的方向是一致的,我们就可以带着更新来查询了不是吗?😁 举个例子:

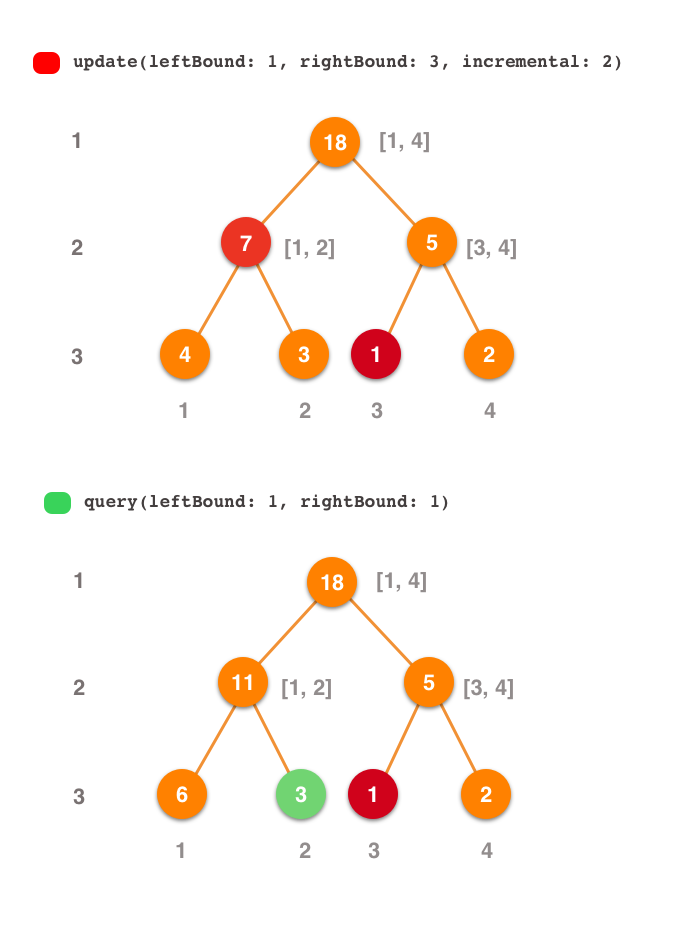

update
操作是为了让下标为 1 到 3 这三个元素的值加 2,所以我们在 2 层的第一个节点和 3 层第三个节点中加入 lazy 标记,代表这些节点需要更新,并在这个过程中,由于我们无需在 root 节点增加标记,所以在递归之前执行一次 pushDown
操作来更新 root 节点的值。
query
操作时为了查询第一个元素,我们逐层递归遍历,当来到 2 层第一个节点的时候发现,这个节点 lazy 标记不为空,所以更新一下它的值,来到 3 层第一个节点时也相同,更新之后查出结果。
是的,这就是 Lazy 思想 。当需要更新时,我们只对指定范围的父亲节点中增加一个待更新标记,说明这些范围我们需要更新。而在查询的时候,如果发现这些标记,则再对其子节点进行更新 。而这个向下更新操作就是 pushDown
方法。
下面我们用 Swift
来实现一下这个方案,其案例是对于 SumSegmentTree
的完整代码:
public class LazySegmentTree {
private var value: Int
private var leftBound: Int
private var rightBound: Int
private var leftChild: LazySegmentTree ?
private var rightChild: LazySegmentTree ?
// Interval Update Lazy Element
private var lazyValue: Int
// MARK : - Push Up Operation
// Description : 这里是 push up 操作,用来对 Segment Tree 向上更新
private func pushUp ( lson: LazySegmentTree , rson: LazySegmentTree ) {
self . value = lson . value + rson . value
}
// MARK : - Push Down Operation
// Description : 这里是 push down 操作,用来对 Segment Tree 向下更新
// Open Interface Function : 此处应该开放方法对齐进行 Override
private func pushDown ( round: Int , lson: LazySegmentTree , rson: LazySegmentTree ) {
if lazyValue != 0 {
lson . lazyValue += lazyValue
rson . lazyValue += lazyValue
lson . value += lazyValue * ( round - ( round >> 1 ))
rson . value += lazyValue * ( round >> 1 )
lazyValue = 0
}
}
public init ( array: [ Int ], leftBound: Int , rightBound: Int ) {
self . leftBound = leftBound
self . rightBound = rightBound
self . value = 0
self . lazyValue = 0
if leftBound == rightBound {
value = array [ leftBound ]
return
}
let middle = ( leftBound + rightBound ) / 2
leftChild = LazySegmentTree ( array: array , leftBound: leftBound , rightBound: middle )
rightChild = LazySegmentTree ( array: array , leftBound: middle + 1 , rightBound: rightBound )
pushUp ( lson: leftChild! , rson: rightChild! )
}
public convenience init ( array: [ Int ]) {
self . init ( array: array , leftBound: 0 , rightBound: array . count - 1 )
}
public func query ( leftBound: Int , rightBound: Int ) -> Int {
if leftBound <= self . leftBound && self . rightBound <= rightBound {
return value
}
guard let leftChild = leftChild else { fatalError ( "leftChild should not be nil" ) }
guard let rightChild = rightChild else { fatalError ( "rightChild should not be nil" ) }
pushDown ( round: self . rightBound - self . leftBound + 1 , lson: leftChild , rson: rightChild )
let middle = ( self . leftBound + self . rightBound ) / 2
var result: Int = 0
if leftBound <= middle { result += leftChild . query ( leftBound: leftBound , rightBound: rightBound ) }
if rightBound > middle { result += rightChild . query ( leftBound: leftBound , rightBound: rightBound ) }
return result
}
// MARK : - One Item Update
public func update ( index: Int , incremental: Int ) {
if self . leftBound == self . rightBound {
self . value += incremental
return
}
guard let leftChild = leftChild else { fatalError ( "leftChild should not be nil" ) }
guard let rightChild = rightChild else { fatalError ( "rightChild should not be nil" ) }
let middle = ( self . leftBound + self . rightBound ) / 2
if index <= middle { leftChild . update ( index: index , incremental: incremental ) }
else { rightChild . update ( index: index , incremental: incremental ) }
pushUp ( lson: leftChild , rson: rightChild )
}
// MARK : - Interval Item Update
public func update ( leftBound: Int , rightBound: Int , incremental: Int ) {
if leftBound <= self . leftBound && self . rightBound <= rightBound {
self . lazyValue += incremental
self . value += incremental * ( self . rightBound - self . leftBound + 1 )
return
}
guard let leftChild = leftChild else { fatalError () }
guard let rightChild = rightChild else { fatalError () }
pushDown ( round: self . rightBound - self . leftBound + 1 , lson: leftChild , rson: rightChild )
let middle = ( self . leftBound + self . rightBound ) / 2
if leftBound <= middle { leftChild . update ( leftBound: leftBound , rightBound: rightBound , incremental: incremental ) }
if middle < rightBound { rightChild . update ( leftBound: leftBound , rightBound: rightBound , incremental: incremental ) }
pushUp ( lson: leftChild , rson: rightChild )
}
}
我们来解释一下这些代码片段:
private var lazyValue: Int
这里我们增加了一个 lazyValue
变量,这个变量的含义在当前数据结构中是当前节点需要的增量。因为其 update
操作时用来对指定元素和指定范围的所有元素进行数量的增减。lazyValue
的值弱不为0,则说明当前节点的 value
需要更新,而其真值为 value + lazyValue * (rightBound - leftBound + 1)
。
// MARK : - Push Down Operation
// Description : 这里是 push down 操作,用来对 Segment Tree 向下更新
// Open Interface Function : 此处应该开放方法对齐进行 Override
private func pushDown ( round: Int , lson: LazySegmentTree , rson: LazySegmentTree ) {
if lazyValue != 0 {
lson . lazyValue += lazyValue
rson . lazyValue += lazyValue
lson . value += lazyValue * ( round - ( round >> 1 ))
rson . value += lazyValue * ( round >> 1 )
lazyValue = 0
}
}

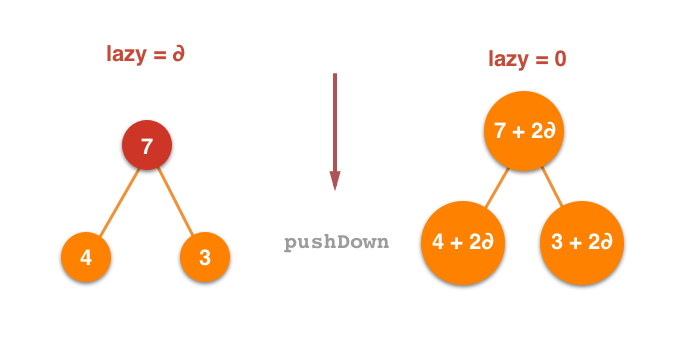

这块代码主要是检查当前节点是否需要更新,如果 lazyValue
的值不为 0,则需要向下更新一次。其更新原则就是左右范围差值算出元素个数,乘以增量算出父亲节点的增量,之后更新子节点的增量值,最后清零自身增量值。
public func query ( leftBound: Int , rightBound: Int ) -> Int {
if leftBound <= self . leftBound && self . rightBound <= rightBound {
return value
}
guard let leftChild = leftChild else { fatalError ( "leftChild should not be nil" ) }
guard let rightChild = rightChild else { fatalError ( "rightChild should not be nil" ) }
pushDown ( round: self . rightBound - self . leftBound + 1 , lson: leftChild , rson: rightChild )
let middle = ( self . leftBound + self . rightBound ) / 2
var result: Int = 0
if leftBound <= middle { result += leftChild . query ( leftBound: leftBound , rightBound: rightBound ) }
if rightBound > middle { result += rightChild . query ( leftBound: leftBound , rightBound: rightBound ) }
return result
}
根据前文的分析,当对区间进行查询的时候,我们就调用一次 pushDown
来向下更新数据,以保证在递归查询之前所有的数据处于最新状态。有的读者可能有疑问,为什么这里的代码比原版的少了一个 if else
的判断?因为我使用的是判断中值与边界的关系,而不是边界与边界的关系。笔者认为这么判断代码会更加简洁,思路也会更加清晰。
以上便是 lazy 思想实现线段树的区间更新操作及思路。作为线段树的扩展,还可以通过可持久化线段树 (也称主席树 )对于永久化保存状态的概念,更深一步的理解 lazy 思想。另外,在代码实现的时候,notonlysuccess 大牛的实例代码,可以说是线段树中最为清晰的实现方式,给出链接 有兴趣可以自行学习。
后记
线段树在工程项目中是一科极少出现的数据结构,由于它属于区间树(Interval Tree)的(而且是一种大开销的)一种实现,所以更多的用来解决数学中的区间问题和统计问题中。在之后的完善中,还会针对于 SumSegmentTree
增加更多的区间(交、并、补)等操作,以及叶子节点合并、二维线段树等等更为复杂,希望大家共同学习,一起完善 Segment Tree In Swift 🐦。
文章最后求一个中译英的译者,一起向 swift-algorithm-club
进行 contribution。
